How to Choose Swaged Hose Fittings for Heavy-Duty Construction Equipment: 5 Critical Metrics

How to Choose Swaged Hose Fittings for Heavy-Duty Construction Equipment: 5 Critical Metrics

Selecting the right swaged hose fittings requires careful evaluation of five critical metrics:

  • Pressure Rating
  • Material Compatibility
  • Size and Thread Type
  • Sealing Method
  • Environmental Resistance

Proper attention to these factors protects heavy-duty construction equipment from failure. Safety, performance, and reliability depend on informed choices. The Swaged Hose Fittings selection guide helps operators and technicians maintain optimal function, even under harsh conditions.

Key Takeaways

  • Always choose hose fittings with a pressure rating that meets or exceeds your system’s maximum pressure to ensure safety and prevent failures.
  • Match hose and fitting materials carefully to resist chemicals, temperature changes, and environmental conditions, avoiding corrosion and leaks.
  • Select the correct fitting size and thread type using manufacturer charts and standards to prevent leaks and ensure a secure connection.
  • Pick the right sealing method based on your equipment’s pressure and vibration needs, and perform regular inspections to catch leaks early.
  • Consider environmental factors like moisture, UV exposure, and chemicals when selecting fittings, and use protective coatings to extend their lifespan.

Swaged Hose Fittings Selection Guide: Pressure Rating

Swaged Hose Fittings Selection Guide: Pressure Rating

What Is Pressure Rating?

Pressure rating refers to the maximum pressure a hose fitting can safely withstand during operation. Manufacturers determine this value through rigorous testing and engineering standards. The pressure rating appears in units such as PSI (pounds per square inch) or bar. This metric helps users match fittings to the hydraulic system’s demands. In the Swaged Hose Fittings selection guide, pressure rating stands as a foundational metric for safe and efficient equipment performance.

Why Pressure Rating Matters in Heavy-Duty Applications

Heavy-duty construction equipment operates under intense hydraulic forces. Incorrect pressure ratings can lead to hose bursts, leaks, or catastrophic failures. These incidents may cause equipment downtime, safety hazards, or costly repairs. Operators rely on the Swaged Hose Fittings selection guide to ensure that each fitting matches or exceeds the system’s maximum working pressure. Proper selection protects both personnel and machinery.

Tip: Always select fittings with a pressure rating equal to or higher than the system’s peak operating pressure.

How to Assess Pressure Rating for Your Equipment

To assess the correct pressure rating, technicians should:

  1. Identify the maximum working pressure of the hydraulic system.
  2. Check the manufacturer’s specifications for both the hose and the fitting.
  3. Ensure the fitting’s pressure rating meets or exceeds the system’s requirements.
  4. Consider pressure surges or spikes that may occur during operation.

A table can help organize this information:

System Pressure (PSI) Hose Rating (PSI) Fitting Rating (PSI) Safe to Use?
3,000 3,500 4,000 Yes
5,000 5,000 4,500 No

Following the Swaged Hose Fittings selection guide ensures that pressure ratings align with real-world demands, reducing the risk of failure.

Practical Tips and Common Mistakes

Selecting the right pressure rating for swaged hose fittings requires attention to detail and a systematic approach. Technicians and equipment managers can follow these practical tips to ensure safe and reliable operation:

  • Always verify the maximum working pressure of the hydraulic system before selecting a fitting. Manufacturers provide this information in equipment manuals or technical datasheets.
  • Choose fittings with a pressure rating that meets or exceeds the highest pressure the system will encounter, including any potential spikes or surges.
  • Inspect both the hose and fitting for visible markings that indicate pressure ratings. These markings help prevent mismatches during installation.
  • Use a pressure chart or table to compare system requirements with available fitting ratings. This step reduces the risk of selecting an under-rated component.

Tip: Keep a record of all pressure ratings for hoses and fittings in a maintenance log. This practice simplifies future inspections and replacements.

Common mistakes can compromise safety and performance. Avoid these errors:

  1. Relying on assumptions instead of checking actual pressure ratings. Guesswork can lead to dangerous mismatches.
  2. Ignoring pressure surges that occur during equipment operation. Even brief spikes can exceed the fitting’s capacity.
  3. Mixing fittings from different manufacturers without confirming compatibility. Not all fittings meet the same standards.
  4. Overlooking the effects of temperature on pressure ratings. High temperatures can reduce a fitting’s maximum safe pressure.

Technicians who follow these tips and avoid common mistakes help maintain the integrity of hydraulic systems. Consistent attention to pressure ratings supports long-term equipment reliability and safety.

Swaged Hose Fittings Selection Guide: Material Compatibility

Swaged Hose Fittings Selection Guide: Material Compatibility

Understanding Material Compatibility

Material compatibility refers to how well the hose and fitting materials work together in a hydraulic system. Each material reacts differently to fluids, temperatures, and environmental conditions. The Processing Magazine industry report highlights that choosing compatible materials for core tubes, reinforcement layers, covers, and end connections is essential for durability. For example, 316L stainless steel offers strength but may corrode in highly acidic environments. Fluoropolymer cores such as PTFE or FEP provide excellent chemical resistance, making them suitable for harsh or sanitary applications. The Swaged Hose Fittings selection guide recommends evaluating both the hose and fitting materials to ensure they can handle the system’s media and conditions.

Risks of Incompatible Materials

Using incompatible materials can lead to serious problems. Corrosion, leaks, and mechanical failures often result from poor material choices. The SAE J2027 standard outlines how hoses must withstand exposure to chemicals, temperature extremes, and mechanical stress. If the hose or fitting material cannot resist the system’s fluids or environment, swelling, degradation, or loss of strength may occur. Galvanic corrosion can develop when dissimilar metals, such as stainless steel hoses with brass fittings, come into contact. This weakens the connection and increases the risk of leaks or bursts.

Note: End-fittings are critical points where material compatibility directly affects system efficiency and safety.

How to Match Fitting and Hose Materials

Technicians should follow a systematic approach to match fitting and hose materials:

  • Identify the fluid type and temperature range in the hydraulic system.
  • Select hose and fitting materials that resist chemical attack and temperature extremes.
  • Match the end-fittings with the hose in both size and material to prevent leaks and corrosion.
  • Consider environmental factors such as UV exposure, moisture, and temperature fluctuations.
  • Review manufacturer specifications and industry standards for compatibility.

Regular inspections and proper maintenance also help extend hose life. The Swaged Hose Fittings selection guide encourages users to avoid common pitfalls, such as ignoring application conditions or neglecting routine checks. By carefully matching materials, technicians can ensure long-lasting, safe, and efficient hydraulic connections.

Real-World Examples

Selecting the right materials for hose fittings in heavy-duty construction equipment leads to measurable improvements in performance and longevity. Real-world data from various industries highlights the importance of material compatibility and proactive management.

  • A mining operation improved hose routing and added abrasion protection. This change tripled the service life of their hoses. Proper material selection and installation methods played a key role in this success.
  • A construction company adopted smart hose monitoring and preventive maintenance. These steps doubled the lifespan of their hoses and increased operational uptime by 27%. Compatibility between hose and fitting materials, combined with regular checks, prevented early failures.
  • Environmental shielding, such as sleeves and guards, protected hoses from UV rays, heat, and physical damage. These measures significantly extended service life in harsh outdoor and mobile equipment conditions.
  • Regular testing and monitoring with pressure sensors, temperature gauges, and flow meters allowed early detection of hose degradation. Timely maintenance based on these readings helped avoid unexpected breakdowns.
  • Compliance with SAE and ISO standards ensured hoses met strict benchmarks for pressure, temperature, and durability. This approach prevented premature failures and maintained system reliability.
  • Choosing base materials like nitrile rubber for hydrocarbons or specialty synthetics for acids prevented chemical and mechanical failures. Correct material selection directly extended the service life of hose fittings.

Field data shows that wear rates in slurry hoses increase rapidly with higher flow velocity. Doubling the speed can quadruple wear rates. Chemical attack combined with mechanical abrasion accelerates hose failure beyond standard predictions. Temperature also plays a significant role. Materials that perform well at normal temperatures may degrade quickly at higher temperatures found in industrial processes. Flex fatigue accounts for a large portion of early hose failures, especially near connection points. Cold weather can reduce flex life by up to 60%. These findings demonstrate the need for careful material selection and design tailored to specific application stresses.

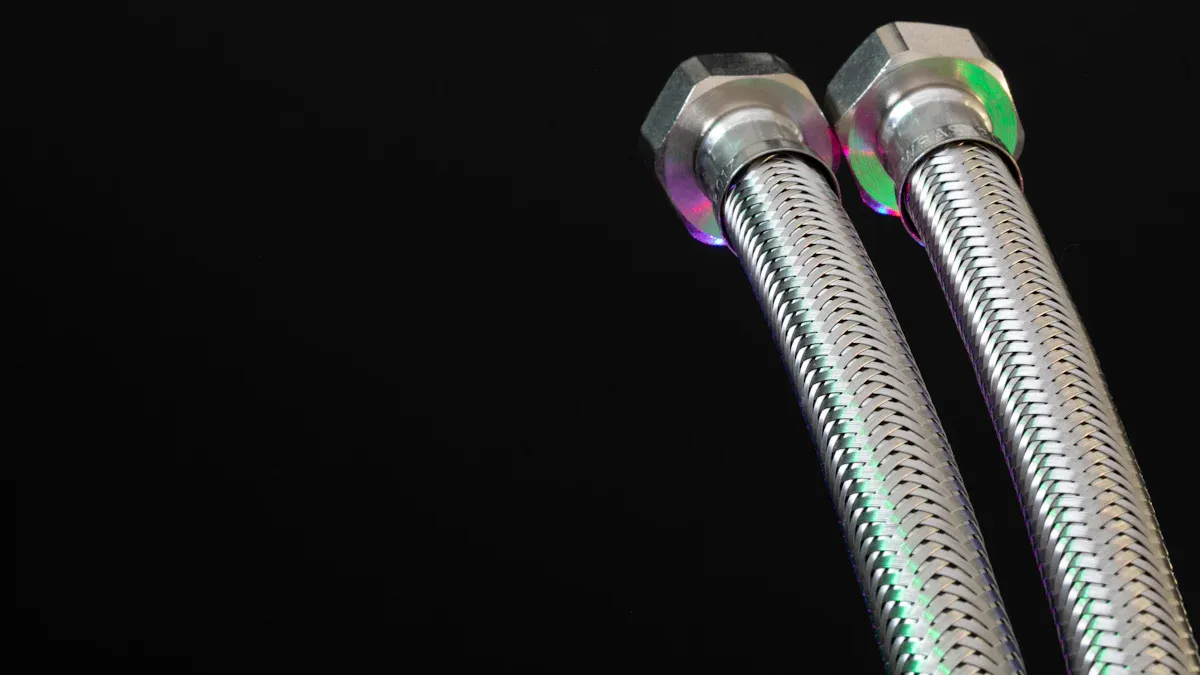

Swaged Hose Fittings Selection Guide: Size and Thread Type

Determining the Correct Size

Selecting the correct size for hose fittings is crucial for safe and efficient hydraulic system performance. Technicians rely on the STAMP framework—Size, Temperature, Application, Media, and Pressure—to guide their choices. Exact size matching prevents leaks and system failures. In construction equipment, burst tests and cyclic endurance tests validate that fittings can withstand pressure surges and repetitive cycles. Industry standards such as SAE J343 and NFPA T6.1 set strict criteria for safety and performance. Manufacturers recommend using complete hose assemblies tailored to specific applications to ensure compliance and reliability.

  • Size selection should always use nominal pipe measurements from standard charts, not physical measurements taken by hand.
  • Material properties, including strength and corrosion resistance, influence the choice of fitting size and type.

Tip: Always consult manufacturer charts and technical datasheets to confirm the correct fitting size for your application.

Identifying Thread Types and Standards

Thread type and standard selection play a vital role in leak prevention and system compatibility. Common thread types include NPT (National Pipe Tapered Thread) and BSP (British Standard Pipe). Each thread type has unique angles and pitches—NPT uses a 60° angle, while BSP uses a 55° angle. Mismatched threads can cause misalignment and spiral leaks. International standards such as ISO 724:1993, ISO 68-1, and ASME B1.1 define pitch diameter and thread engagement, ensuring proper fit and sealing.

Standard Focus Areas Leak Prevention Features
DIN 3852 Threaded ports, O-ring and metal-to-metal seals Defines diameters, pitch, and sealing surfaces for reliability
ISO 1179 Threaded ports, O-ring and metal-to-metal seals Ensures global compatibility and effective sealing
AWWA C800 Waterworks threads Optimized for leak-proof connections in high-pressure systems

Technicians use precision gauges and micrometers to verify thread dimensions and ensure compliance with these standards.

Ensuring Proper Fit and Avoiding Leaks

Proper fit between hose and fitting prevents leaks and maintains system integrity. Adhering to standardized thread types and pitch diameters ensures reliable connections. Dryseal thread variations, such as NPTF, create interference fits that block spiral leakage. Using appropriate thread sealants, like Teflon tape or liquid sealants, enhances sealing—especially for plastic threads. Careful tightening prevents deformation and thread damage.

  • Never mix incompatible thread types, such as NPT with BSP, without proper adapters or sealants.
  • Always base pipe thread size selection on nominal measurements, not physical size.
  • Material choice affects sealing performance and durability; select fittings that match the application’s pressure and environmental demands.

The Swaged Hose Fittings selection guide emphasizes that precise sizing and thread matching, supported by international standards and best practices, are essential for leak-free, long-lasting hydraulic connections.

Common Sizing Mistakes

Selecting the correct size for swaged hose fittings is essential for hydraulic system reliability. Many technicians encounter common pitfalls during the sizing process. These mistakes can lead to leaks, pressure drops, or even equipment failure.

1. Measuring the Outside Diameter Instead of the Inside Diameter

Some technicians measure the outside diameter of the hose or fitting. Industry standards require the use of the inside diameter for accurate sizing. Using the wrong measurement can result in a poor fit and reduced flow capacity.

2. Ignoring Hose Expansion Under Pressure

Hydraulic hoses expand slightly when pressurized. Failing to account for this expansion may cause the fitting to loosen over time. Always consider the working pressure and select a fitting that accommodates hose movement.

3. Mixing Metric and Imperial Sizes

Construction equipment often uses both metric and imperial sizing systems. Mixing these systems can create mismatches. Always verify the measurement system before selecting a fitting.

4. Overlooking Thread Engagement

Proper thread engagement ensures a secure connection. Insufficient engagement increases the risk of leaks. Technicians should check that threads fully engage without excessive force.

5. Relying on Visual Inspection Alone

Visual inspection cannot guarantee correct sizing. Use calipers or thread gauges to confirm dimensions. This practice reduces the risk of installation errors.

Tip: Keep a sizing chart or reference guide in the workshop. Quick access to standard sizes helps prevent costly mistakes.

A table can help summarize these common errors:

Mistake Consequence
Measuring outside diameter Poor fit, leaks
Ignoring hose expansion Loose fittings, leaks
Mixing metric and imperial sizes Mismatched connections
Overlooking thread engagement Leaks, system failure
Visual inspection only Incorrect sizing, downtime

Technicians who avoid these mistakes help maintain system integrity and extend equipment life.

Swaged Hose Fittings Selection Guide: Sealing Method

Types of Sealing Methods in Swaged Fittings

Swaged hose fittings use several sealing methods to ensure a secure and leak-free connection. Technical studies describe these methods by analyzing the design and performance of swaging rings. Radial swaging with a pressure homogenizer, radial swaging with axial pressure, and wedge compression represent the most common types. Each method relies on mechanical-elastic or plastic deformation of the pipe and fitting. Laboratory experiments and simulations show that external swaging uses hydraulic loads to create a tight seal by converting radial force into circumferential pressure. These processes increase both sealing strength and joint reliability. Engineers often select a sealing method based on the application’s pressure and mechanical requirements.

Choosing the Right Seal for Your Application

Selecting the correct sealing method depends on the system’s operating conditions. Construction equipment often faces high pressures and frequent vibration. Radial swaging provides uniform pressure around the hose, making it suitable for these demanding environments. Wedge compression works well for applications that require extra mechanical strength. The Swaged Hose Fittings selection guide recommends reviewing the fluid type, temperature, and expected pressure surges before choosing a seal. Technicians should also consider the compatibility of the hose and fitting materials. Proper selection ensures long-term performance and reduces the risk of leaks.

Preventing Leaks and Failures

Leak prevention remains a top priority in hydraulic systems. Industrial data shows that predictive maintenance and condition-based monitoring help detect leaks early. These strategies allow technicians to schedule repairs before failures occur. Early detection reduces unplanned downtime and improves safety for workers and equipment. Maintenance teams use run-to-failure data to analyze root causes and develop better prevention methods. Interviews with industry experts confirm that these approaches lower failure rates and improve overall system reliability.

Tip: Regular inspection and timely replacement of seals help maintain system integrity and prevent costly breakdowns.

The Swaged Hose Fittings selection guide emphasizes that proper sealing method selection, combined with proactive maintenance, delivers the best results for heavy-duty construction equipment.

Tips for Inspection and Maintenance

Regular inspection and maintenance of swaged hose fittings play a vital role in ensuring system reliability and safety. Technicians should follow a structured approach to identify potential issues before they escalate. Early detection of wear, corrosion, or cracks allows for timely repairs, preventing costly failures and unplanned downtime.

A well-designed inspection protocol includes several key steps:

  1. Establish inspection schedules based on asset age, material, and operating environment. Older equipment or fittings exposed to harsh conditions require more frequent checks.
  2. Use advanced inspection technologies such as ultrasonic testing and automated leak detection systems. These tools help detect hidden defects that visual inspections might miss.
  3. Employ qualified personnel or certified third-party inspectors to conduct thorough evaluations. Their expertise ensures accurate assessments and compliance with safety standards.
  4. Integrate inspection data into a centralized asset management system. This practice supports effective tracking, analysis, and reporting of maintenance activities.
  5. Collect and analyze inspection results to identify trends in corrosion, mechanical damage, or other defects. Statistical analysis and risk assessment guide maintenance priorities.
  6. Plan and execute maintenance actions such as cleaning, coating, or component replacement based on inspection findings. Timely intervention extends equipment life and reduces repair costs.
  7. Maintain detailed records of all inspections, repairs, and maintenance activities. Comprehensive documentation supports regulatory compliance and predictive maintenance strategies.

Tip: Frequent inspections not only improve safety but also help maintain productivity by minimizing equipment downtime.

Technicians who follow these best practices help sustain the integrity of sealing methods in swaged hose fittings. For example, routine inspections in pipeline systems have detected cracks early, allowing for repairs before catastrophic failures occur. This proactive approach protects both personnel and assets, ensuring long-term operational reliability.

Swaged Hose Fittings Selection Guide: Environmental Resistance

Environmental Factors Affecting Fittings

Environmental conditions play a major role in the longevity and reliability of hose fittings. Exposure to moisture, chemicals, UV radiation, and temperature fluctuations can accelerate corrosion and material degradation. Industry standards, such as DIN EN ISO 12944-2, classify environments into six corrosivity categories, ranging from low indoor to very high outdoor exposure. These categories help engineers select materials that match the expected environmental stress. European Assessment Documents require stainless steel for environments with corrosivity category C2 or higher, ensuring fittings withstand harsh industrial conditions. Corrosion resistance classes, determined by factors like chloride and sulphur dioxide exposure, further guide material selection for heavy-duty construction.

Note: Outdoor construction sites often expose fittings to rain, mud, salt spray, and temperature swings, making environmental resistance a top priority.

Selecting Fittings for Corrosive or Extreme Conditions

Choosing the right fittings for corrosive or extreme environments involves several key criteria:

  1. Select materials that resist humidity, temperature extremes, and chemical exposure. Stainless steel offers superior corrosion resistance in marine and industrial settings.
  2. Ensure chemical compatibility between the fitting material and hydraulic fluid to prevent leaks or degradation.
  3. Verify that fittings meet the system’s maximum pressure and temperature ratings, including surges.
  4. Use seals and O-rings made from materials like Buna-N, Viton, or EPDM, which maintain integrity in harsh fluids.
  5. Follow industry standards such as ASME B16.9 for quality and safety.
  6. Balance cost and performance by considering engineered combinations, such as stainless steel fittings with corrosion-resistant tubing alloys.

The Swaged Hose Fittings selection guide recommends evaluating both environmental and operational demands to ensure long-term reliability.

Protective Coatings and Treatments

Protective coatings and treatments significantly extend the lifespan of hose fittings exposed to challenging environments. Experimental data shows that coatings like PVC, TPU, and silicone improve resistance to UV, abrasion, and hydrostatic pressure. For example:

Coating Type Lifespan Extension (Years) UV Strength Retention (%) Abrasion Resistance (Martindale Cycles) Hydrostatic Pressure Resistance (mm)
PVC 3-5 65-75 300,000+ 1,800-2,200
TPU 5-7 85-92 300,000-450,000 1,800-2,200
Silicone 4-6 N/A N/A N/A

TPU coatings, in particular, maintain elasticity and integrity after more than one million cycles. Coated fittings reduce replacement frequency and offer significant cost savings over time. Environmental factors such as UV exposure and humidity can still impact coating performance, so regular inspection remains essential.

Case Studies from Construction Sites

Construction sites present some of the harshest environments for hydraulic hose fittings. Real-world examples highlight how the right choices in fittings and protective measures can prevent costly failures and extend equipment life.

1. Coastal Bridge Project

A contractor worked on a bridge near the ocean. Salt spray and humidity threatened to corrode standard fittings. The team selected stainless steel hose fittings with a TPU protective coating. After two years, inspections showed no visible corrosion or leaks. The equipment operated without interruption, and the maintenance team reported a 40% reduction in hose-related downtime.

2. Quarry Excavator Fleet

A quarry operator managed a fleet of excavators exposed to abrasive dust and frequent temperature swings. The maintenance crew installed swaged hose fittings with abrasion-resistant sleeves. They also used O-rings made from Viton to withstand hydraulic fluid and heat. Over 18 months, the number of hose failures dropped by 60%. The operator saved on replacement costs and avoided unexpected shutdowns.

3. Urban High-Rise Construction

A high-rise project in a city center required equipment to run in tight spaces with constant movement. The team chose compact swaged fittings with silicone coatings for flexibility and UV resistance. Regular inspections and a strict maintenance schedule kept the system leak-free. The project finished on time, and the equipment showed minimal wear on the fittings.

Note: These case studies demonstrate that material selection, protective coatings, and proactive maintenance directly impact the reliability of hydraulic systems in construction environments.

A summary table provides a quick comparison:

Project Type Challenge Solution Result
Coastal Bridge Corrosion Stainless steel + TPU coating No corrosion, less downtime
Quarry Excavator Abrasion, temperature Abrasion sleeves + Viton O-rings Fewer failures, cost savings
Urban High-Rise Tight spaces, movement Compact silicone-coated fittings Leak-free, minimal wear

Selecting the right swaged hose fittings protects equipment and ensures safe operation. The Swaged Hose Fittings selection guide highlights five critical metrics: pressure rating, material compatibility, size and thread type, sealing method, and environmental resistance. Technicians should consult technical resources and seek expert advice for application-specific recommendations. Regular inspection and maintenance, such as visual checks and pressure testing, help prevent failures. The table below summarizes key evaluation aspects:

Evaluation Aspect Recommendation
Hose Construction Types Match to flow and flexibility needs
Connection Options Choose for safety and compatibility
Size Selection Base on flow and handling requirements
Maintenance and Inspection Schedule regular checks and proper storage
Technical Support Use expert guidance for custom solutions

FAQ

What is the main advantage of swaged hose fittings in construction equipment?

Swaged hose fittings provide a secure, permanent connection. This design reduces the risk of leaks and failures. Operators benefit from improved safety and longer service life in demanding environments.

How often should technicians inspect swaged hose fittings?

Technicians should inspect fittings every three to six months. High-use or harsh environments may require more frequent checks. Regular inspection helps detect wear, corrosion, or leaks early.

Can different brands of hose fittings and hoses be mixed?

Mixing brands may cause compatibility issues. Always check manufacturer specifications before combining components. Using matched systems ensures proper fit, sealing, and performance.

Which materials offer the best corrosion resistance for outdoor use?

Material Corrosion Resistance
Stainless Steel Excellent
Brass Good
Carbon Steel Moderate

Stainless steel performs best in harsh outdoor conditions.

What should technicians do if a fitting shows signs of damage?

Technicians must replace damaged fittings immediately. Delaying repairs increases the risk of leaks or equipment failure. Always use manufacturer-approved replacement parts for safety and reliability.
